HULL
100% Hand lay-up fiberglass with balsa sandwich
Flush through-hull fittings
90-degree turn shut off valves
High gloss gel coat
Fiberglass-bonded hull pan
Glass biaxial unidirectional
Glass roving
Hull and deck joint bonded with 3M-5200 and bolted on 4” centers
8 ss keel bolts
RUDDER
Stainless steel rudder stock
Fiberglass rudder blade with high density foam core
Tiller extension
Varnished oak and mahogany laminated tiller
Glass biaxial and unidirectional glass roving
Rudder bearings
100% hand lay-up fiberglass
Glass used as biaxial andunidirectional glass roving
Balsa sandwich and marine plywood sandwich in load bearing areas
Aluminum toe rails bolted on 4”center
Molded hiking ramps

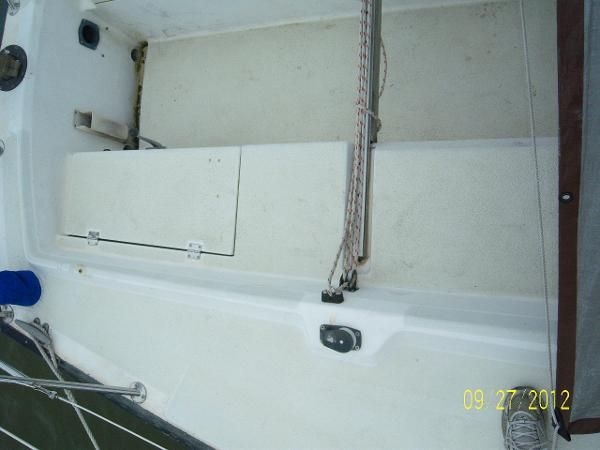

Non-skid on deck, cabin top, cockpit sole and seat top
Two Harken #48.3A 3 speed 2 gear genoa sheet winches
Two Harken #32.2 STA halyard winches
Two Harken one speed grip winch handles
Two double Spinlock halyard stoppers
All deck blocks are lead aft to the cockpit
Two Harken adjustable under load genoa car and track systems
Harken roller bearing traveler with control lines
Double lifelines and stanchions
Welded stainless steel bow and stern pulpits
Four mooring cleats
Six tinted plexiglass cabin windows

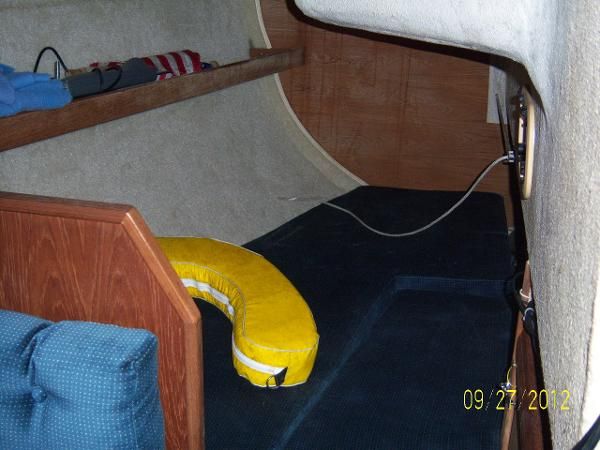

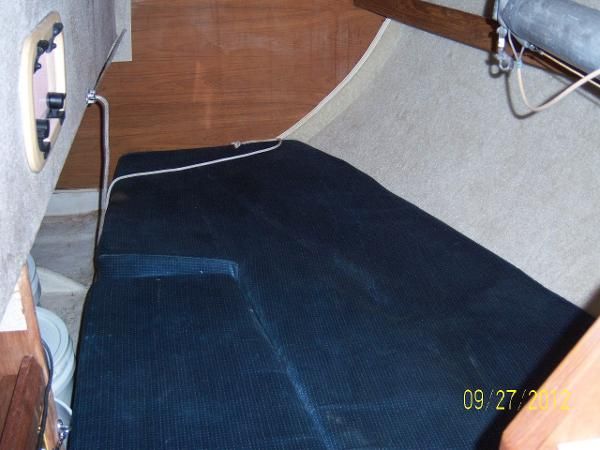

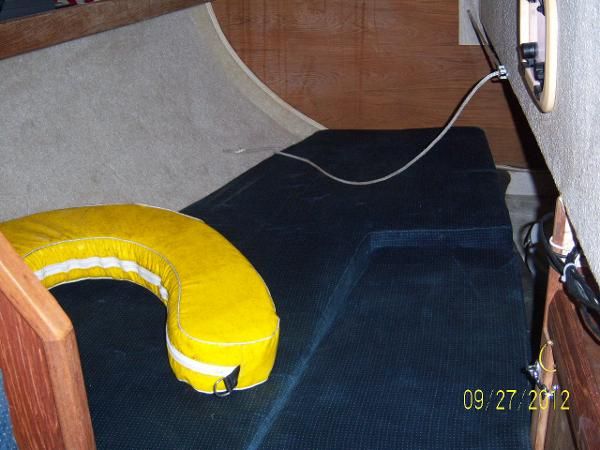

4-inch pilot berth and seat berth cushions
Settee berth backrest cushion with pigeon hole storage behind

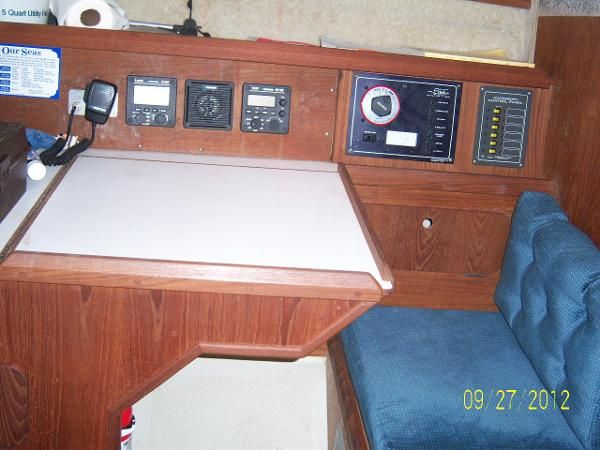

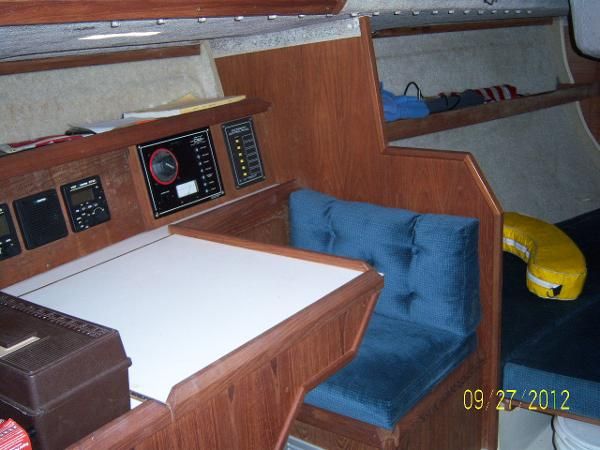

Sit down navigation station with storage for charts and shelf for instruments
Oiled teak bulkhead and cabinets
25 gallon water tank

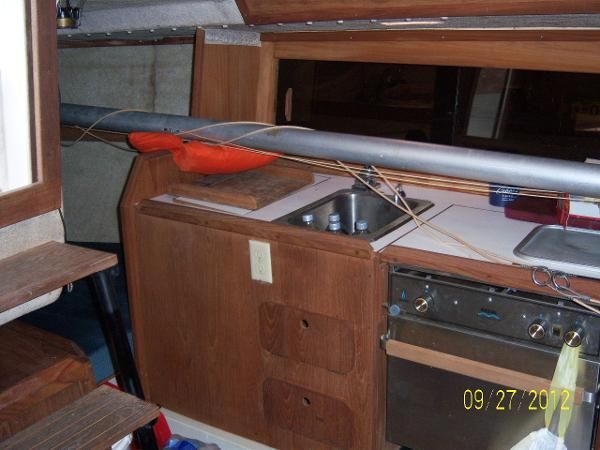

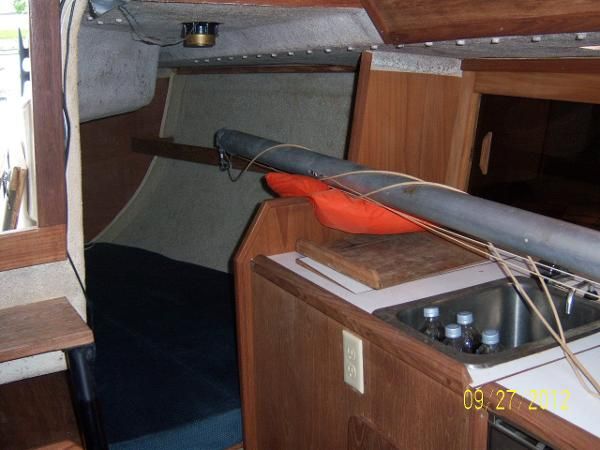

Stainless steel sink with foot pump
Plastic laminate galley counter top
Hideaway stove top cover
Large condiment storage with shelf and tinted acrylic sliding cabinet doors
HEAD COMPARTMENT
Marine head with holding tank
Mirrored sliding doors and vanity
Hanging locker
TANKAGE
17 gallon fuel tank with deck fill
25 gallon water tank with deck fill pump plate
9 gallon holding tank with deck pump plate
PROPULSION
Yanmar 3GM30F
3 cylinder in-line marine diesel
Fresh water cooled
Cast brass propeller strut
1 inch ss propeller shaft
Raw water filter on engine intake
Fuel and water separator
Cockpit engine instrument panel with tachometer, key start and alarms for oil pressure, water temperature and electronics
Martec folding propeller
MECHANICAL AND ELECTRICAL
Two 12-volt 90 amp hour batteries
Circuit breakers on the electrical panel with battery switch and battery condition meter
Running lights
Bow lightsCabin lights
Chart table light
Manual bilge pump
SPINNAKER EQUIPMENT
Port and starboard spinnaker halyards
Spinnaker pole topping lift
Spinnaker track on mast
2-part spinnaker pole butt lift system
2 spinnaker sheet blocks
1 spinnaker pole
1 spinnaker pole foreguy
1 spinnaker pole foreguy block
2 spinnaker sheet cleats
2 spinnaker sheets
SPARS AND RIGGINGKeel stepped mast
Sliding adjustable mast step
White epoxy painted aluminum mast and boom
Tri-sec tapered mast section
Four airfoil painted aluminum tapered spreaders
All rod standing rigging
All internal halyards
One main halyard
One genoa halyard
2 spinnaker halyards
All halyards made of composite material
Hall Spar quick-vang
Combination outhaul and flattening reef - internal
Two interior reefs with lock-off at the gooseneck
Color-coded lines
Running checkstays
Tube inside mast for mast cables
Fine tune mainsheet system and Barney post
Cunningham system: 3 part self-cleating at base of mast
STANDARD COLORS:
Hull White
Deck Light Grey
Waterline Red
OPTIONS:
Deluxe interior package:
Headliner
Teak battens on hull sides
New interior cushions

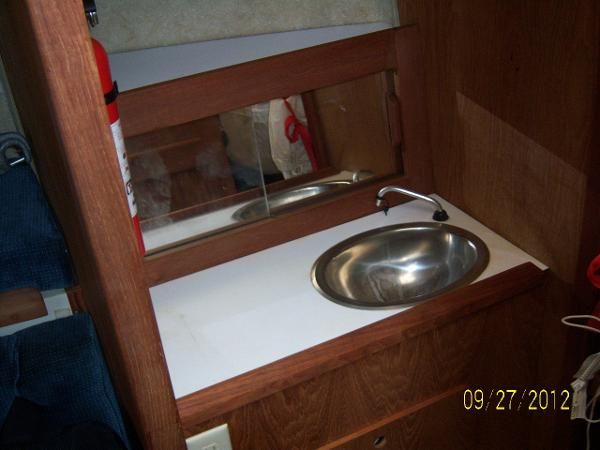

Head vanity with sink and mirror
Varnished teak and holly cabin sole
Removable, hinged v-berth with 4-inch cushions
CNG stove/oven
Remote hydraulic backstay adjuster
